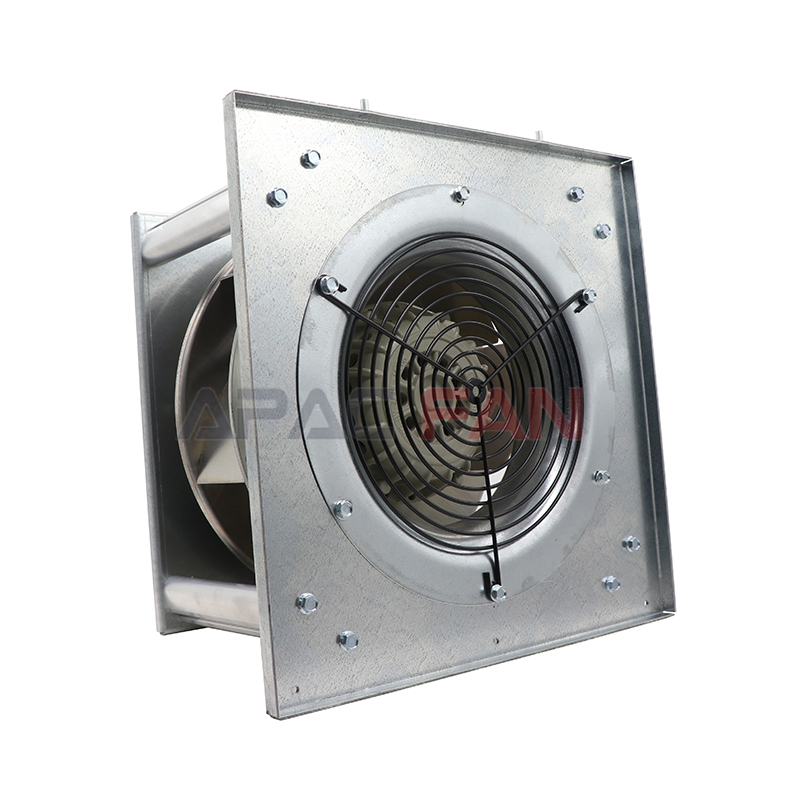

GR25I-6ID.BD.CR 116883/A01 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR25I-6ID.BD.CR 116883/A01
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-277
Size(mm)：250
Max.Air Flow(m³/h)：3500
Max.Pressure(Pa)：1190
Input Power(W)：780
Speed(rpm)：3730

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR25I-6ID.BD.CR 116883/A01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

1~200-277

Size(mm)：

250

Max.Air Flow(m³/h)：

3500

Max.Pressure(Pa)：

1190

Input Power(W)：

780

Speed(rpm)：

3730

Noise(db)：

Description

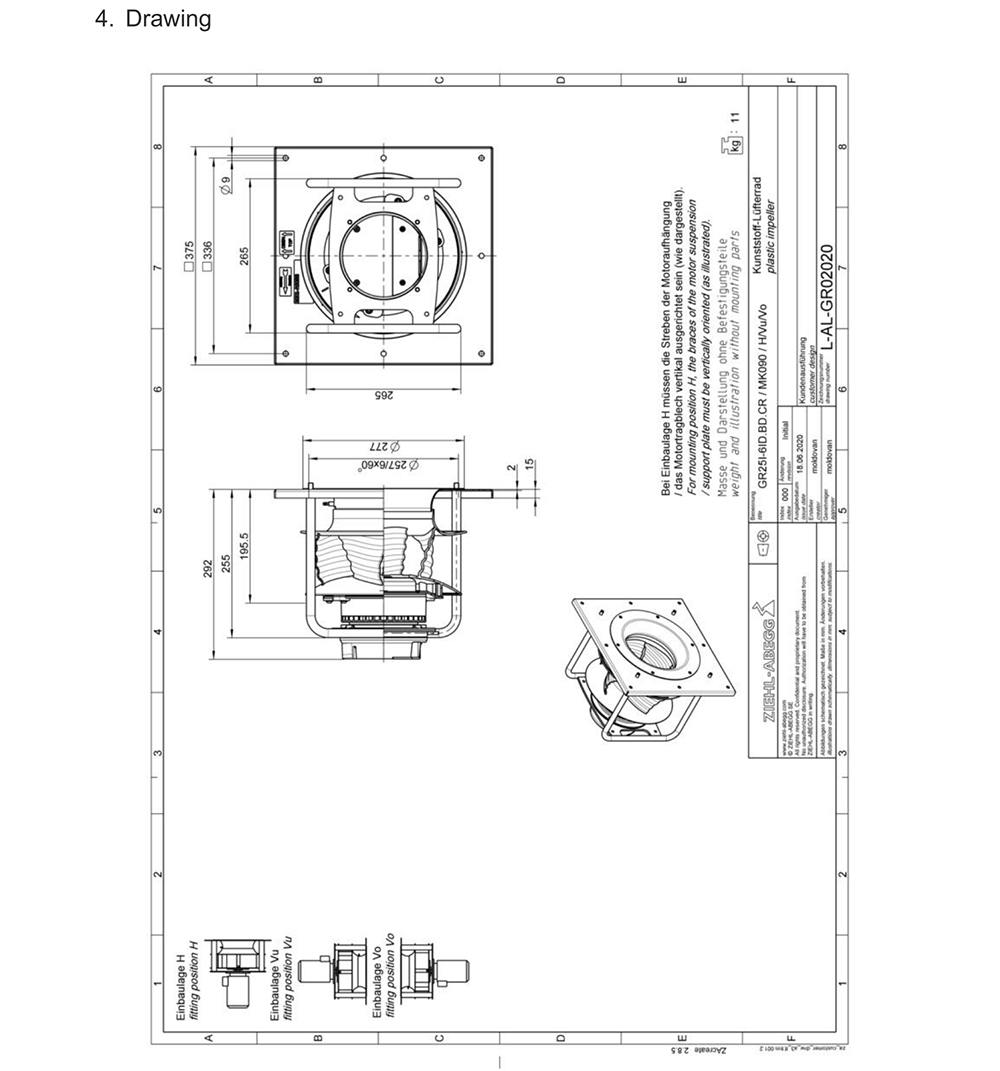

GR25I-6ID.BD.CR 116883/A01 Ziehl-abegg Specification drawing：
